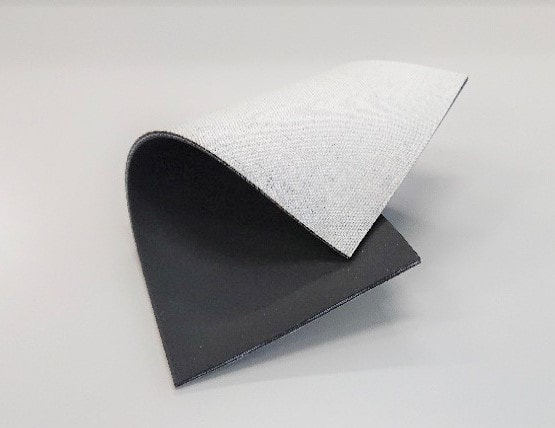

KINYO BOARD is a rubber sheet of multi-layer with heat resistant fluoro-elastomer and aramid fabrics. Because of these materials, it has excellent heat resistance of over 200℃. It shows a good high temperature property and good thickness accuracy. It is used for cushion board in heat pressing process of PCB manufacturing, etc. There's a variety of products of different construction and thickness.
LINE-UP OF KINYO BOARD
|
Construction |
Use Cases |
Product name |
Tickness（mm） |
Advantages |
|---|---|---|---|---|
|
Aramid fabrics / Fluoro-erastomer |
FPC |
Z500 |
1.0 | Smooth rubber surface Follow the small bumps Cloth surface is difficult to stick to when heated and pressurized Bendable Siloxane-free |
| S-200 | 2.0 | |||
| Z165 | 2.3 | |||
| Fluoro-erastomer / Fluoro-erastomer | FPC FPD(LCD) |
FX050 | 0.5 | High compressive displacement retention even after repeated use Smooth rubber surface Follow the small bumps Less contamination Bendable Good sucker absorption, Automatic transfar is possible Siloxane-free |
| Z723 | 1.0 | |||
| F-200 | 2.0 | |||
| Aramid fabrics / Aramid fabrics | PCB Decorative laminated sheet Cards |
R-055 | 0.55 | Cloth surface is difficult to stick to when heated and pressurized Bendable Difficult to spread during compression Siloxane-free |
| R-075 | 0.75 | |||
| R-105 | 1.05 | |||
| R-225 | 2.25 | |||
| Z497 | 2.3 | |||
| R-250 | 2.5 | |||
| Aramid fabrics / Aramid fabrics (Antistatic) |
Electronic Devices Building Materials |
G-1 | 1.6 | High compressive displacement retention even after repeated use Cloth surface is difficult to stick to when heated and pressurized Less electrification during peeling Board-shaped Good sucker absorption, Automatic transfar is possible Siloxane-free |
| G-2 | 2.9 | |||
| G-3 | 4.2 | |||
| GA-1 | 2.25 | Cloth surface is difficult to stick to when heated and pressurized Less electrification during peeling Bendable Siloxane-free |
||
| GA-2 | 3.4 |
GOLD PRENE is a fabrics lined with rubber at the both side, for industrial use. It is strong enough since it has a base fabrics inside. It is used for diaphragms, packings, etc. Depending on types of fabrics and rubber, we have products of oil or heat resistance. Longer size can be supplied.
PERFLON PAINT is a fluoro-elastomer paint of heat and corrosion resistance. It has a strong adhesion for the substrate such as metal, glass, concrete, etc. After mixing hardener into paint, it can be easily applied to the substrate by brushing or spraying. It is used for paint on exhaust ductings and fans. When in use, as solvent is contained, pay attention for sufficient exhausting to avoid fire.
